TCA稱重傳感器詳細信息請點擊：英國LCMsystems稱重傳感器獲取最新報價！！！
產品品牌：英國LCMsystems（LOADCELL）
產品類別：不銹鋼拉壓式雙向受力
產品系列：LCM拉壓力TCA系列稱重傳感器
產品型號：TCA-1T,TCA-2T,TCA-3T,TCA-5T,TCA-7.5T,TCA-10T,TCA-20T,TCA-30T,TCA-50T,TCA-75T,TCA-100T
英國LCMsystems TCA稱重傳感器特點
▲范圍從1tonne到100tonne
▲不銹鋼結構。
▲環境密封等級為IP66（IP67和潛水的版本也可提供）
▲設計，以適應標準公制桿端軸承的尺寸。
▲特殊尺寸和可用范圍。
▲可以提供英制和公制螺紋。
▲可提供完整的交配球形桿端軸承。
產品描述：該TCA系列稱重傳感器是非常適合測量拉伸和壓縮力。在稱重傳感器各端標準公制螺紋的目的是接受標準的球形座桿端軸承。有很大的靈活性，在TCA的設計，使我們能夠提供特殊尺寸，以滿足特定的應用需求，或不同的端螺紋尺寸/組合。有可與外螺紋的每一端的版本，或外螺紋的一端，雌性另一個。
英國LCMsystems TCA稱重傳感器技術指標
|
Rated Load (tonne)
|
1, 2, 3, 5, 7.5, 10, 20, 30, 50, 75, 100
|
|
Proof Load
|
150% of Rated Load
|
|
Ultimate Breaking Load
|
> 300% of Rated Load
|
|
Output
|
1.5 mV/V at Rated Load (±10%)
|
|
Accuracy
|
< ±0.20% of Rated Load
|
|
Non-Repeatability
|
< ±0.10% of Rated Load
|
|
Excitation Voltage
|
10vdc recommended, 15vdc maximum
|
|
Bridge Resistance
|
350Ω, (700Ω for ranges above 30tonne)
|
|
Insulation Resistance
|
> 500MΩ @ 500vdc
|
|
Operating Temperature Range
|
-20 to +70°C
|
|
Compensated Temperature Range
|
-10 to +50°C
|
|
Zero Temperature Coefficient
|
< ±0.010% of Rated Load/°C
|
|
Span Temperature Coefficient
|
< ±0.010% of Rated Load/°C
|
|
Environmental Protection Level
|
IP66 (IP67 optional)
|
|
Connection Type
|
Integrated bayonet lock connector, supplied with 5 meter mating cable assembly
|
|
Wiring Connections
|
|
Red
|
+ve supply
|
Blue
|
-ve supply
|
|
Green
|
+ve signal
|
Yellow
|
-ve signal
|
|
|
Options Available
|
Special ranges and sizes available
Different thread arrangements
Special electrical connections
Submersible versions available
Supply with spherical rod-end bearingsy
|

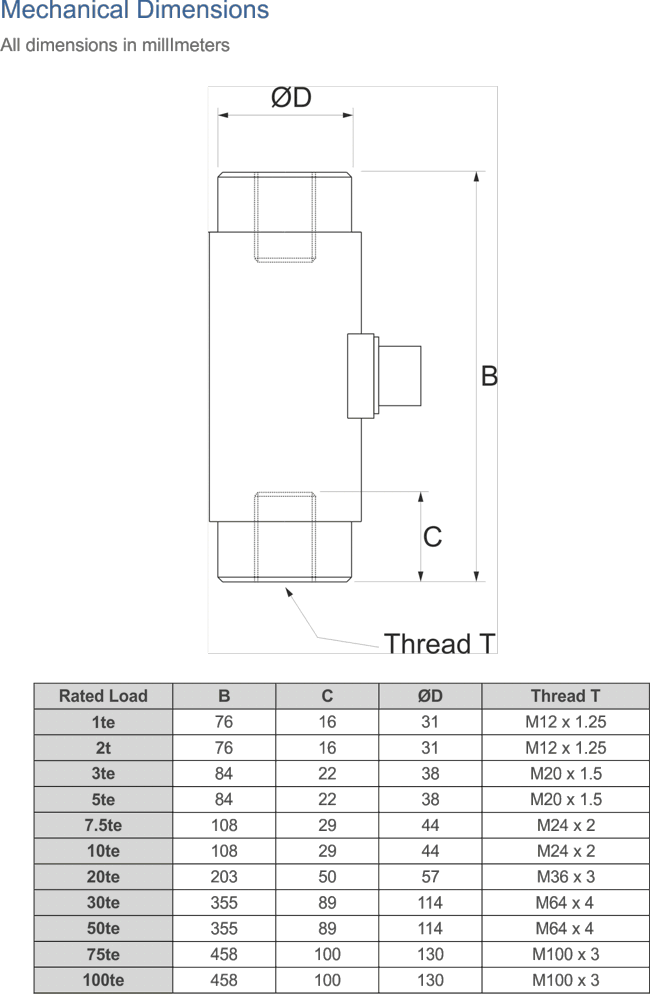

英國LCMsystems TCA稱重傳感器技術尺寸
Ranges from 1tonne to 100tonne
Stainless Steel construction.
Environmentally Sealed to IP66 (IP67 and submersible versions can also be offered)
Designed to fit standard metric rod-end bearing sizes.
Special Sizes and ranges available.
Can be supplied with imperial threads & male or male/female end threads.
Can be supplied complete with mating spherical rod-end bearings.
The TCA series load cells are based on the conventional low profile or pancake load cell principle. The internal construction is a shear web design, offering high natural frequency, low deflection and excellent resistance to side and torsion forces.
The TCA is constructed from stainless steel offering excellent corrosion resistance. There is an optional mounting base available, which is required if the load cell is to be used in tension. The mounting base is also constructed from stainless steel.
The standard load cell is supplied with an integral MIL spec. connector and supplied with a mating connector.
The TCA is ideally suited to many testing applications, where high stability and low height are essential requirements.
The TCA can be supplied with any of LCM Systems range of load cell instrumentation, and can be supplied calibrated as a complete ready to go system.
