STA-2稱重傳感器詳細信息請點擊：英國LCMsystems稱重傳感器：
產品品牌：英國LCMsystems（LOADCELL）
產品類別：張力S型拉壓力傳感器
產品系列：LCM拉壓式STA-2系列稱重傳感器
產品型號：STA-2 250kg，STA-2 500kg，STA-2 1000kg，STA-2 2000kg,STA-2 5000kg，STA-2 10000kg，STA-2 20000kg
產品描述：STA-2系列稱重傳感器非常適用于測量拉伸和壓縮力，在稱重傳感器各端標準公制螺紋的目的是接受標準的球形座桿端軸承。
STA-2適用于許多應用場合而拉伸和壓縮負載單元是必需的，高精確度的測量。應用，如容器稱重，材料試驗機測功機等。
英國LCMsystems STA-2稱重傳感器特點
▲范圍250，500，1000，2000,5000，10000，20000千克
▲不銹鋼全焊接結構
▲環境密封等級IP68
▲可提供完整的交配球形桿端軸承
英國LCMsystems STA-2稱重傳感器技術參數
|
Rated Load (kg)
|
250, 500, 1000, 2000, 5000, 10000, 20000
|
|
Proof Load
|
150% of Rated Load
|
|
Ultimate Breaking Load
|
> 300% of Rated Load
|
|
Output
|
2.0 mV/V at Rated Load (±0.2%)
|
|
Accuracy
|
< ±0.03% of Rated Load
|
|
Non-Repeatability
|
< ±0.01% of Rated Load
|
|
Excitation Voltage
|
10vdc recommended, 15vdc maximum
|
|
Bridge Resistance
|
350Ω
|
|
Insulation Resistance
|
> 500MΩ @ 100vdc
|
|
Operating Temperature Range
|
-20 to +70°C
|
|
Compensated Temperature Range
|
-10 to +40°C
|
|
Zero Temperature Coefficient
|
< ±0.002% of Rated Load/°C
|
|
Span Temperature Coefficient
|
< ±0.002% of Rated Load/°C
|
|
Environmental Protection Level
|
IP68
|
|
Connection Type
|
PVC screened cable 3m long, via cable gland
|
|
Wiring Connections
|
|
Red
|
+ve supply
|
Blue
|
-ve supply
|
|
Green
|
+ve signal
|
Yellow
|
-ve sense
|
|
|
Options Available
|
Can be supplied with instrumentation
Spherical seating rod end bearings
Compression load button
|

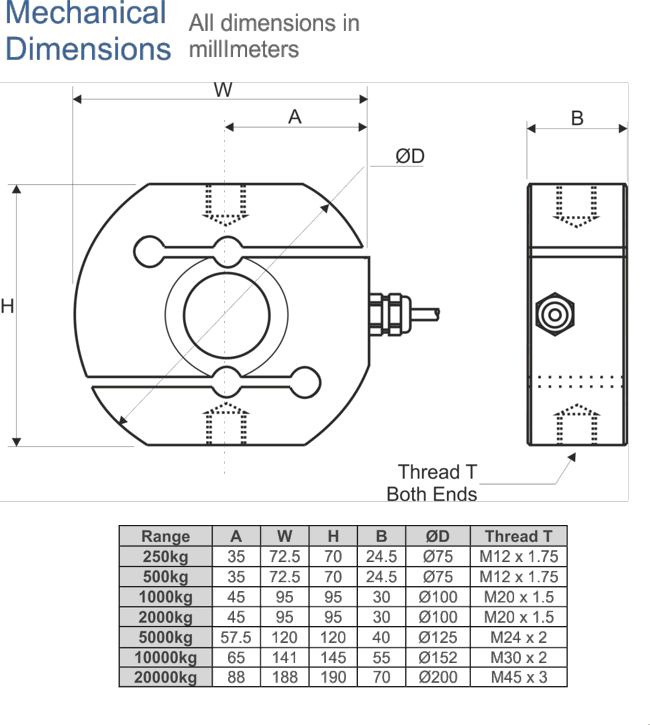

英國LCMsystems STA-2稱重傳感器技術尺寸
Ranges 250, 500, 1000, 2000,5000, 10000, 20000kg
Stainless steel fully welded construction
Environmentally sealed to IP68
Can be supplied complete with mating spherical rod-end bearing
The STA-2 series load cell is ideal for measuring both tensile and compressive forces. The standard metric threads at each end of the load cell are designed to accept standard spherical seating rod-end bearing。
The STA-2 is suitable for many applications where a tension and compression load cell is required, for high accuracy measurements. Applications such as vessel weighing, material test machines and dynamometers area few examples.
The STA-2 series can be supplied on it's own or combined with our extensive range of instrumentation to provide a complete load monitoring system.
